What Is a Thermal Cut-Out and How Does It Work?
Introduction
A thermal cut-out is an important safety component used to protect electrical and electronic equipment from excessive temperatures. When equipment becomes too hot, a thermal cut-out interrupts the electrical circuit, helping to prevent overheating, component damage, and potentially dangerous operating conditions.
Thermal cut-outs are widely used across industrial, commercial, and domestic applications, including electric motors, heating equipment, commercial catering appliances, transformers, pumps, and electrical machinery.
Choosing the correct thermal cut-out is essential for ensuring reliable protection. Factors such as operating temperature, electrical rating, reset method, mounting arrangement, and operating environment all need to be considered when selecting a suitable component.
In this guide, we explain what a thermal cut-out is, how a thermal cut-out works, where they are commonly used, and how to choose the right thermal cut-out for your application.
What Is a Thermal Cut-Out?

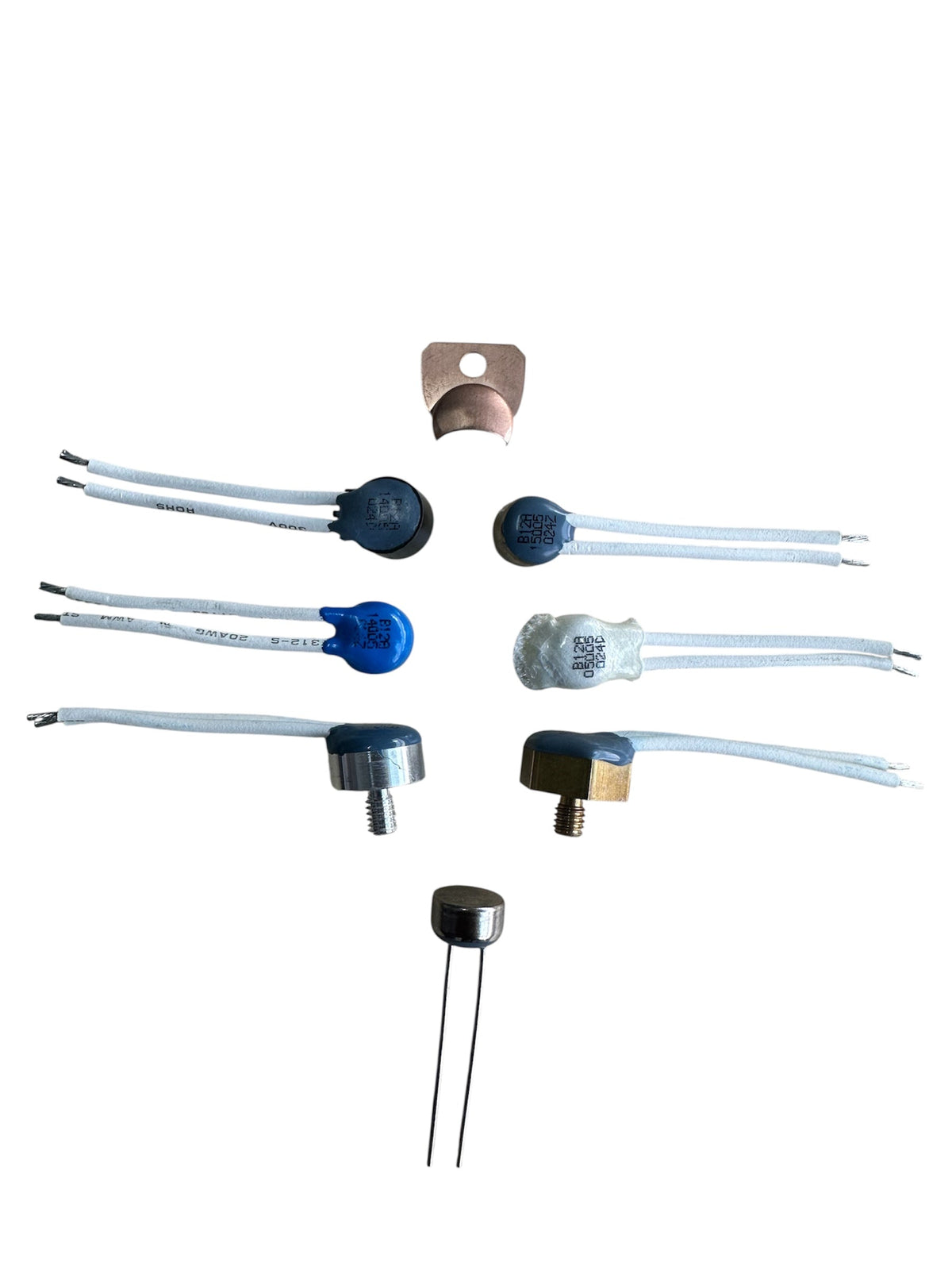

A thermal cut-out, also known as a thermal switch or thermal protector in some applications, is a temperature-sensitive electrical safety device designed to interrupt a circuit when a predetermined temperature is reached.
Its primary purpose is to protect equipment from overheating.
A thermal cut-out typically contains a temperature-sensitive mechanism that responds when the surrounding or component temperature reaches its specified operating point. Once this temperature is reached, the electrical contacts change state and interrupt the circuit.
Depending on the design, a thermal cut-out may either:
- Automatically reset once the temperature falls below a specified level.
- Require manual resetting.
- Remain permanently open and require replacement.
The correct type depends on the equipment and the level of protection required.
How Does a Thermal Cut-Out Work?
A thermal cut-out works by monitoring temperature and changing the state of an electrical circuit when a predetermined temperature is reached.
One common design uses a bimetallic element. This consists of two metals with different rates of thermal expansion. As the temperature increases, the metals expand at different rates, causing the element to bend or move.
At the specified operating temperature, this movement activates the electrical contacts and opens the circuit.
For example, if a piece of equipment normally operates below 100°C but begins to overheat, a thermal cut-out with an appropriate operating temperature can disconnect the electrical supply before the equipment reaches a potentially damaging temperature.
Once the equipment cools, an automatically resetting thermal cut-out may close the circuit again, allowing operation to resume.
The exact operating and reset characteristics depend on the specific thermal cut-out.
Normally Open and Normally Closed Thermal Cut-Outs
Thermal cut-outs are available with different contact configurations.
Normally Closed (NC)
A normally closed thermal cut-out allows current to flow during normal operation. When the specified temperature is reached, the contacts open and interrupt the circuit.
This configuration is commonly used for over-temperature protection.
Normally Open (NO)
A normally open thermal switch keeps the circuit open during normal operation and closes when a specified temperature is reached.
This configuration can be useful when a temperature event needs to activate another part of a system.
Selecting the correct contact configuration is important because using the wrong type can prevent the protection circuit from operating as intended.
Automatic and Manual Reset Thermal Cut-Outs
Another important consideration is how the thermal cut-out resets after activation.
Automatic Reset
An automatic reset thermal cut-out will typically return to its normal electrical state once the temperature falls below its reset temperature.
This can be useful for equipment that needs to resume operation automatically after a temporary over-temperature condition.
Manual Reset
A manual reset thermal cut-out requires an operator to reset the device after it has activated.
Manual reset designs can provide an additional level of safety because the equipment cannot automatically restart after an overheating event.
The appropriate reset method depends on the application, equipment design, and safety requirements.
Common Applications of Thermal Cut-Outs
Thermal cut-outs are used in many applications where excessive temperature could damage equipment or create a safety risk.
Electric Motors
Electric motors can generate significant amounts of heat during operation. Overheating can occur because of excessive loads, restricted ventilation, mechanical problems, or prolonged operation.
A thermal cut-out can help protect the motor by interrupting the circuit when the temperature becomes too high.
Heating Equipment
Heating equipment needs controlled temperature protection to prevent components from exceeding their safe operating limits.
Thermal cut-outs can be used as an additional safety measure alongside thermostats and other temperature control devices.
Commercial Catering Equipment
Commercial ovens, grills, fryers, coffee machines, and other catering equipment often operate at high temperatures.
Thermal cut-outs can provide protection against abnormal temperature increases and help prevent damage to heating elements and other components.
HVAC Equipment
Heating, ventilation, and air-conditioning systems can also use thermal protection to help safeguard motors, heaters, compressors, and other components.
Industrial Machinery
Manufacturing machinery may contain motors, heaters, transformers, pumps, and other components that generate heat.
Thermal cut-outs can be incorporated into these systems to provide protection against excessive operating temperatures.
How to Choose the Right Thermal Cut-Out
Selecting the correct thermal cut-out requires more than simply choosing an operating temperature.
1. Operating Temperature
The operating or switching temperature is one of the most important specifications.
The thermal cut-out should activate at a temperature appropriate for the equipment being protected. Choosing a temperature that is too high may allow damage to occur before the protection operates, while a temperature that is too low could cause unnecessary interruptions.
2. Electrical Rating
Check the required:
- Voltage
- Current
- AC or DC operation
- Electrical load type
The thermal cut-out must be suitable for the electrical conditions of the application.
3. Reset Type
Determine whether your application requires:
- Automatic reset
- Manual reset
- One-shot operation
This should be considered alongside the safety requirements of the equipment.
4. Contact Configuration
Check whether you require a Normally Closed (NC) or Normally Open (NO) configuration.
5. Mounting Method
Thermal cut-outs are available in different physical configurations and mounting arrangements.
The mounting method must allow the device to accurately detect the temperature of the component or area being protected.
6. Physical Size
Available space can be an important consideration, particularly in compact electrical equipment.
Check the dimensions of the thermal cut-out and ensure there is sufficient space for installation and wiring.
7. Environmental Conditions
Consider the environment in which the thermal cut-out will operate.
Factors such as:
- Moisture
- Dust
- Vibration
- Chemicals
- High temperatures
can affect component selection and long-term reliability.
Common Mistakes to Avoid
Selecting the wrong thermal cut-out can result in unreliable protection or unnecessary equipment shutdowns.
Choosing the Wrong Temperature
The switching temperature needs to be appropriate for the equipment. Do not simply select the highest available temperature.
Ignoring Electrical Ratings
A thermal cut-out must be suitable for the voltage and current of the application. Always check the manufacturer's specifications.
Using the Wrong Reset Type
Automatic and manual reset devices behave differently. Consider what should happen after an over-temperature event before selecting a product.
Incorrect Installation
The position of the thermal cut-out can affect how accurately it detects temperature. Poor contact with the protected component may result in delayed or inaccurate operation.
Focusing Only on Price
The cheapest component is not necessarily the most suitable. A reliable thermal cut-out can help protect much more expensive equipment and reduce the risk of downtime.
Why Quality Matters
Thermal cut-outs are often used as a critical line of defence against overheating. The reliability of the component can therefore be just as important as its price.
A quality thermal cut-out can provide:
- Reliable temperature protection
- Consistent switching performance
- Improved equipment safety
- Reduced risk of overheating
- Longer equipment life
- Reduced maintenance and downtime
Using components from an experienced supplier also gives manufacturers and engineers greater confidence that the selected product is appropriate for their application.
Where required, certification and technical documentation can also help customers verify that components meet the relevant requirements for their equipment and application.
